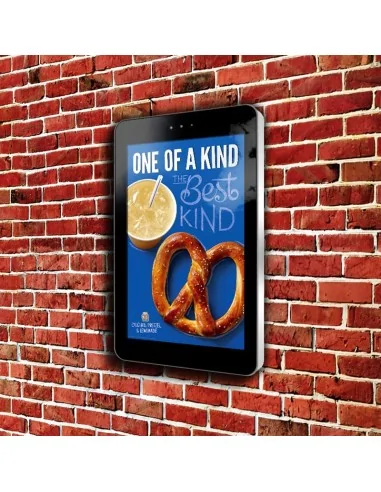

Allsee Wall-Mounted Outdoor Digital Advertising Displays

SKU: OW22D Categories: ,

1,820.009,395.00 EX Vat

OUTDOOR DIGITAL ADVERTISING DISPLAYS



IP Rated Ultra High Brightness Digital Signage Solution (22″-65″) Larger sizes available on request

Clear
Loading...

Description

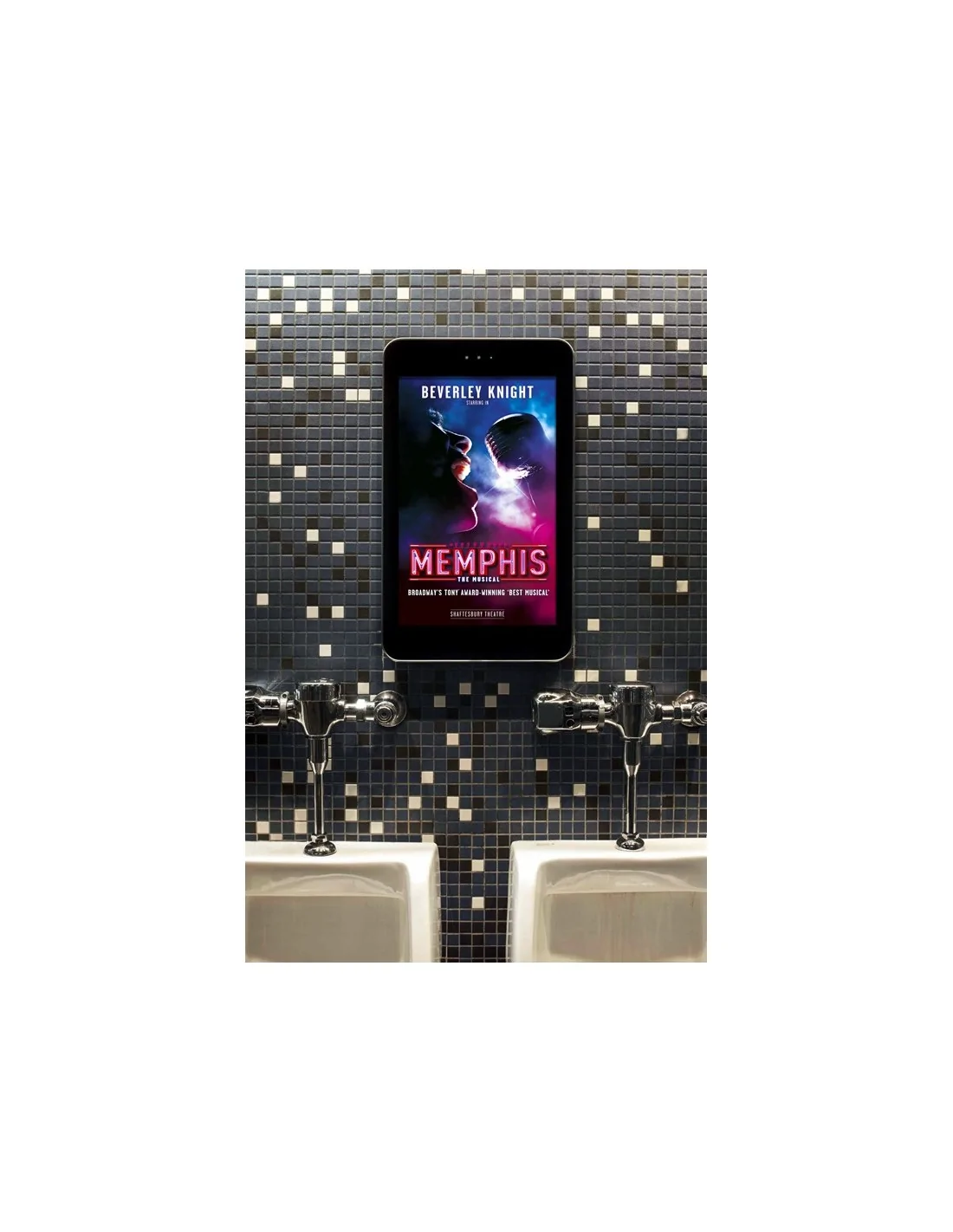

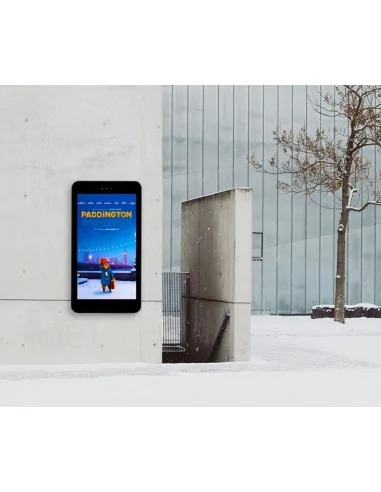

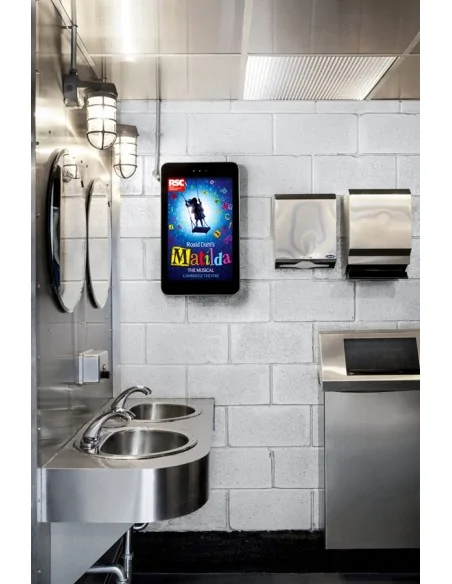

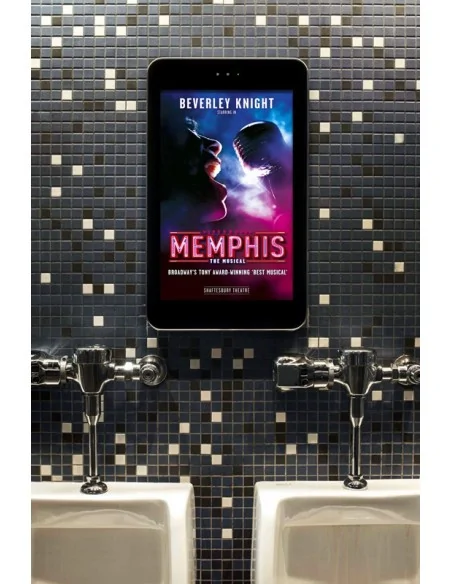

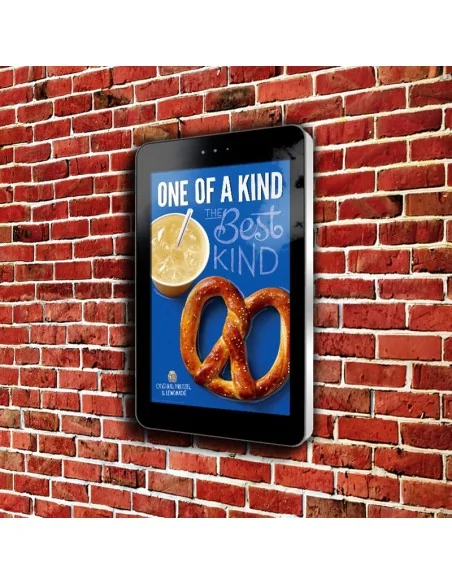

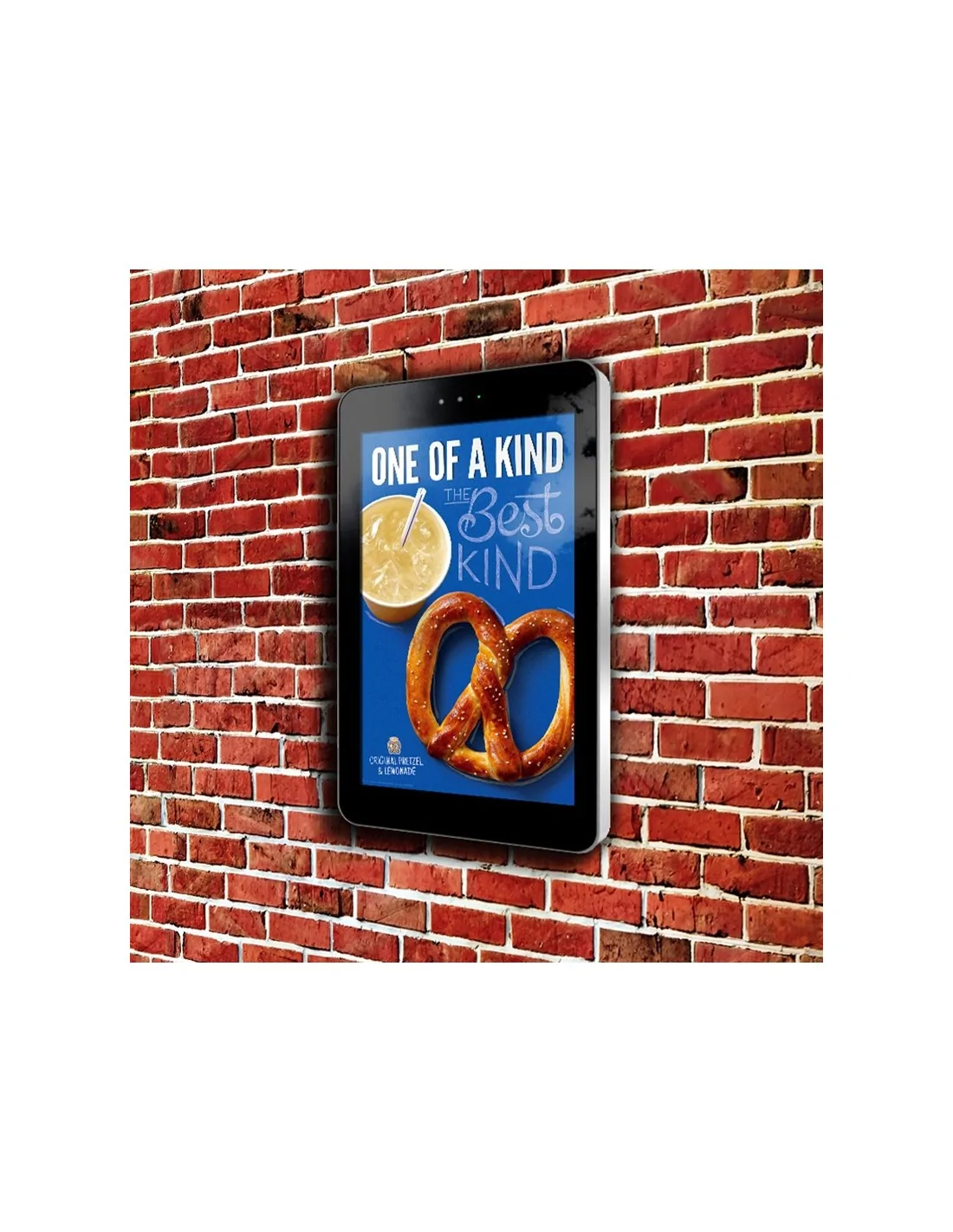

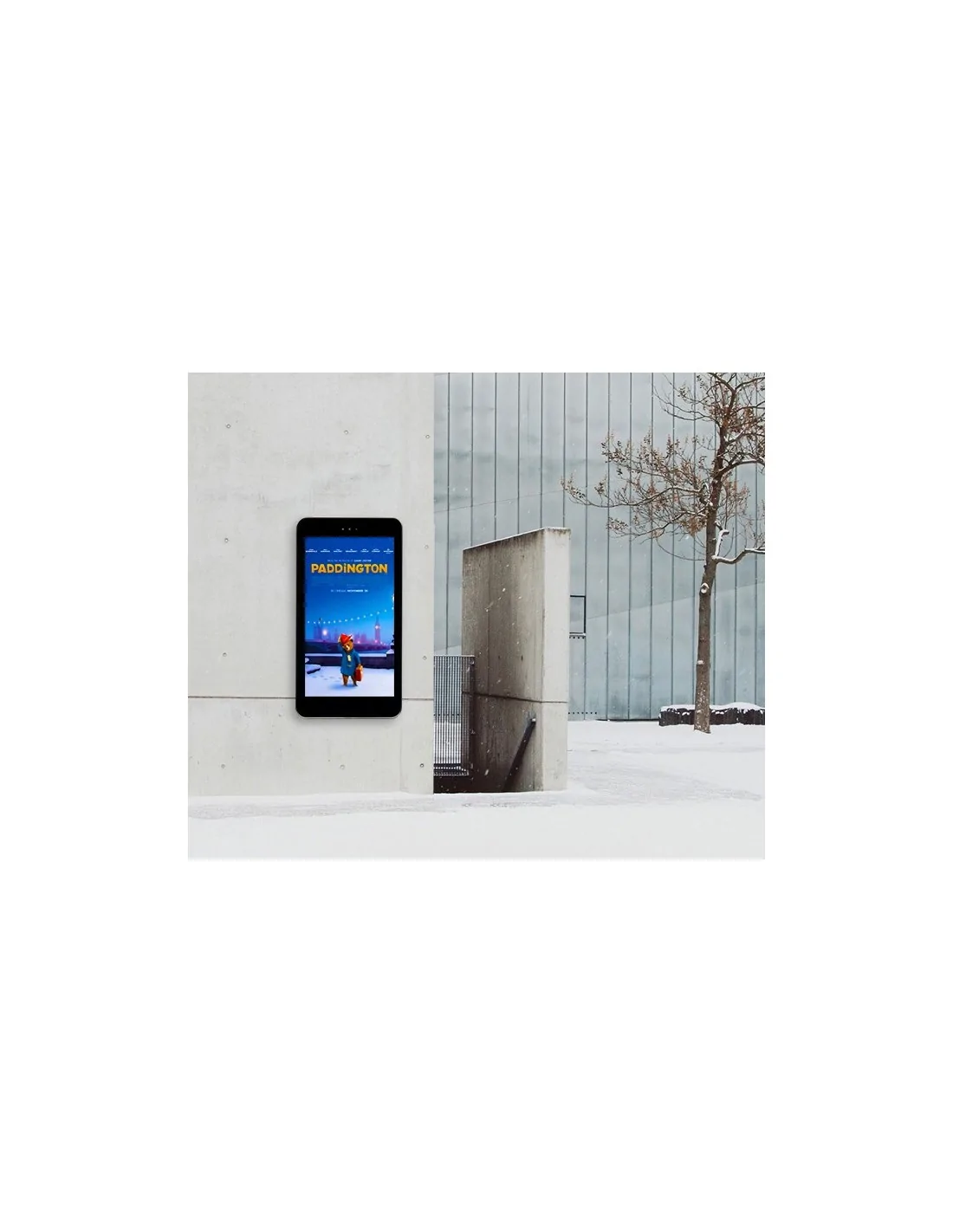

Allsee Wall-Mounted Outdoor Digital Advertising Displays



OUTDOOR DIGITAL ADVERTISING DISPLAYS



IP Rated Ultra High Brightness Digital Signage Solution (22″-65″) Larger sizes available on request



Direct Sunlight Readable

Thanks to their commercial grade ultra-high brightness panels (2,500cd/m2), these displays are up to 10 times brighter than a domestic TV and so are easily readable even in direct sunlight.



Weatherproof

Designed to withstand the elements, these displays are protected against all wet weather conditions and airborne dust particles by their robust IP65 rated enclosure. They also feature a waterproof coating on all internal circuit boards and waterproof over-moulded AV connectors.



Vandal Proof

With a mild steel enclosure and thermally-toughened glass front, these IK10 rated displays are designed to withstand any damage that may occur in public spaces. To avoid tampering, controls and inputs are hidden and cannot be accessed by passers-by.



Advanced Temperature Control System

To maximise the lifespan of the display, the internal airflow system keeps the screen running at the optimal temperature regardless of the external conditions. Built-in air conditioning can be tailored to allow the display to work in any climate.



Anti Reflective Glass

The front glass face is specially treated to help diffuse direct sunlight, making the display easily readable even in bright weather conditions.



Plug and Play

Plug and Play is the most straightforward way to upload content to the screen. Simply load images and videos onto a USB, insert into the display, wait for your content to copy over, then remove. Your images and videos will now play in a continuous loop.



Free Lockable Wall Mount

To ensure that this a complete turnkey solution, a lockable wall mount is included at no extra cost, allowing you to securely mount your screen in either landscape or portrait orientation.



Internal Locker



Should you need run the screen from an external source, there is space to fit a small PC or media player inside the lockable compartment. This can then be connected to the display via the HDMI, VGA or 3.5mm audio inputs.



4K Compatible*



With four times the resolution of Full HD, get amazing picture quality for a truly immersive viewing experience when using HDMI.



Optional Network Upgrade



For a small charge, you can upgrade your screen to be networked. This will allow you to connect your screen via Wi-Fi, LAN or 4G, and then remotely update it over the internet.



Customisation Available



Bespoke displays can be manufactured to order should you require a non-standard solution, to incorporate a camera or touch screen upgrade for example. We can also modify existing models to add a 4G module for mobile connectivity or a vinyl logo/wrap.

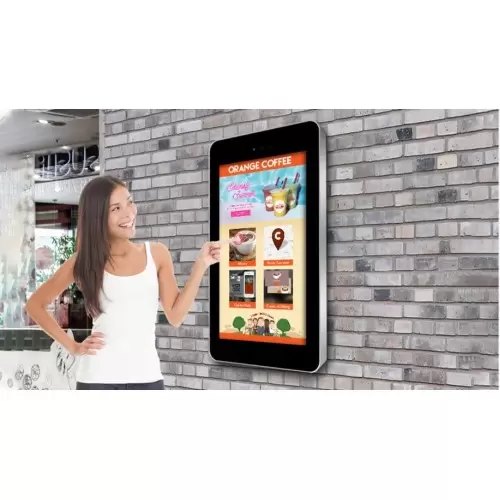

 PCAP Wall-Mounted Outdoor Touch Screen Displays



PCAP Touch Screen



State-of-the-art projected capacitive technology provides the most responsive and sensitive touch experience available, as well as offering superior optical quality. Unlike other touch technologies, PCAP is not affected by dust or debris on the surface of the screen.



No Ghost Touch



The electrodes that control the interactivity are sandwiched between two layers of special protective glass to prevent phantom touches. This ensures ultimate accuracy and a seamless touch experience.



Allsee the solution to Outdoor Digital Advertising Displays



Display

Panel
Aspect Ratio 16:9
Viewing Angle 178ø
Contrast Ratio 8000:1
Video HDMI, VGA
Input Voltage AC110~240V (50Hz~60Hz)
Physical Specification 22 Inch – OW22D 32 Inch – OW32D 43 Inch – OW43D 49 Inch – OW49D 55 Inch – OW55D 65 Inch – OW65D
Size 22″ 32″ 43″ 49″ 55″ 65″
Display Area 270 x 477 396 x 702 529 x 941 603 x 1073 686 x 1215 803.5 x 1428.5
Unit Size (W x H x D mm) 397 x 736 x 120 516 x 1041 x 130 670 x 1410 x 140 746 x 1500 x 140 817 x 1638 x 140 990 x 1910 x 140
Net Weight 20.05kg 36.2kg 58.75kg 80kg 85kg 95kg
Gross Weight 23.5kg 45kg 70.15kg 91kg 98kg 120kg
Power Consumption (w) 130 190 250 300 430 550
Operating Temperature -20 øC to 50 øC
Operating Humidity 10% to 80%
CPU Quad-Core Cortex-A9 @1.6GHz
Internal Memory 16GB
USB USB2.0 HOST (x2)
RAM 1GB DDR3
Wi-Fi 802.11b/g/n (Network version screen only)
OS Android 4.2.2
